- Wireless Monitoring Module for Hydra Electronic Suction Cup *1
Tilta Wireless Monitoring Module for Hydra Electronic Suction Cup
Key Features
- Real-Time Wireless Suction Pressure Monitoring
- Monitors Up to 12 Suction Cups
- Millisecond-Level Fast Status Response
- Real-Time Battery Level Monitoring
- Audible and Visual Pressure Loss Alerts
- Wide -20°C to 90°C Operating Range
- USB-C Power with Plug-and-Play Setup
Description
Tilta Wireless Monitoring Module for Hydra Electronic Suction Cup – HDA-ESC-WMM
The Tilta Wireless Monitoring Module for Hydra Electronic Suction Cup (HDA-ESC-WMM) is a compact professional monitoring solution designed to provide real-time status information for Tilta electronic suction cups. Built for professional filmmaking, vehicle-mounted camera rigs and production environments, the module allows camera crews to monitor suction pressure and battery levels wirelessly from a convenient central display.
Designed to work seamlessly with the Tilta 4.5-inch Electronic Suction Cup and compatible electronic suction cup systems, the module can monitor up to 12 suction cups simultaneously, while allowing operators to check the individual status of each connected unit. This makes it especially useful for multi-suction-cup camera mounting configurations where continuous status monitoring is essential.

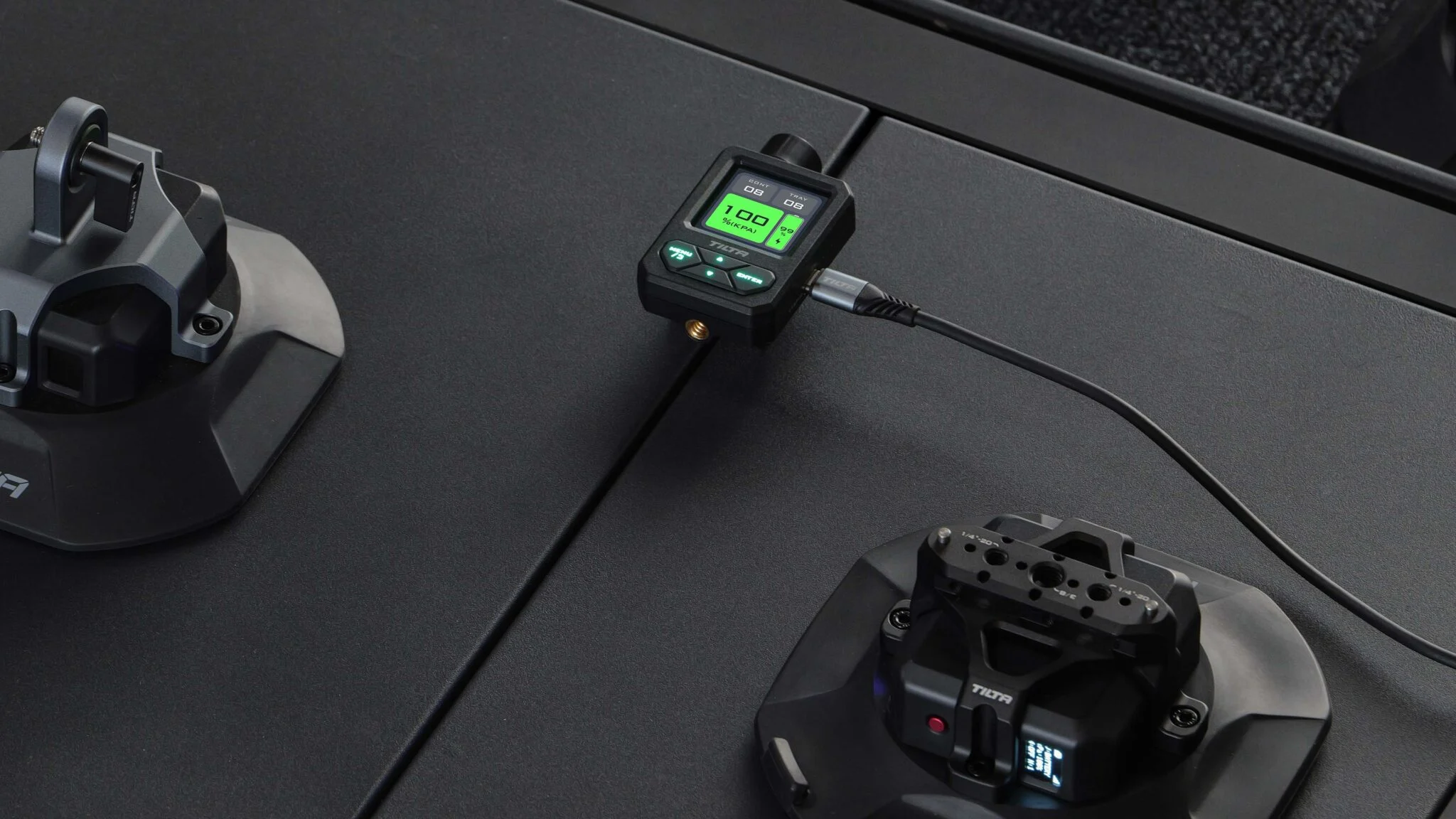

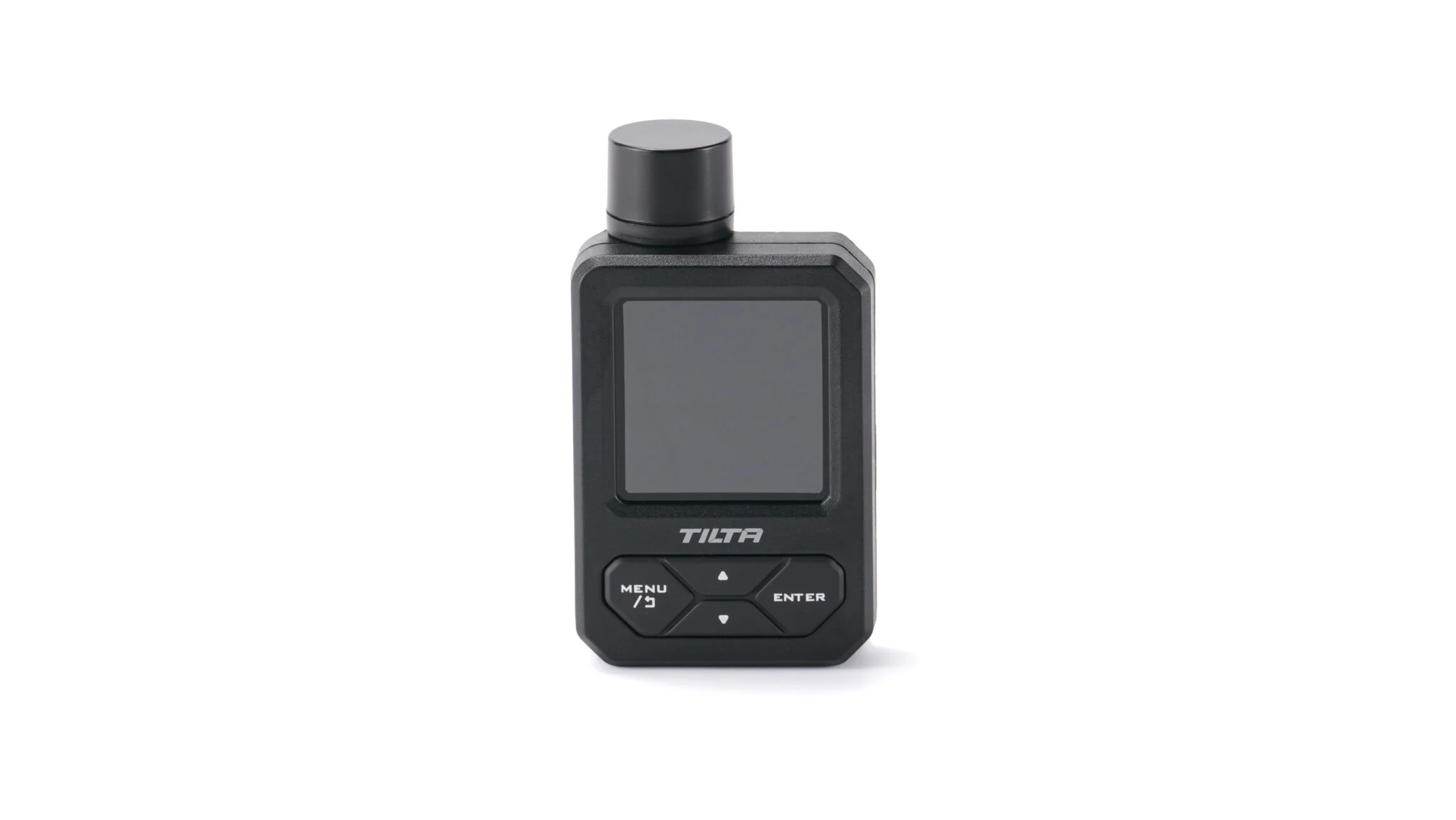

The integrated display provides real-time KPA suction pressure and battery-level information, giving operators a clear overview of the connected suction cups. If a loss of suction pressure is detected, the system provides audible and visual alerts, allowing the crew to identify changes in suction status immediately.
Powered by an automotive-grade processor, the Wireless Monitoring Module delivers fast status updates with a 50ms cycling speed when monitoring 1–6 suction cups and 100ms when monitoring up to 12 units. This responsive monitoring system provides timely feedback during demanding production setups.

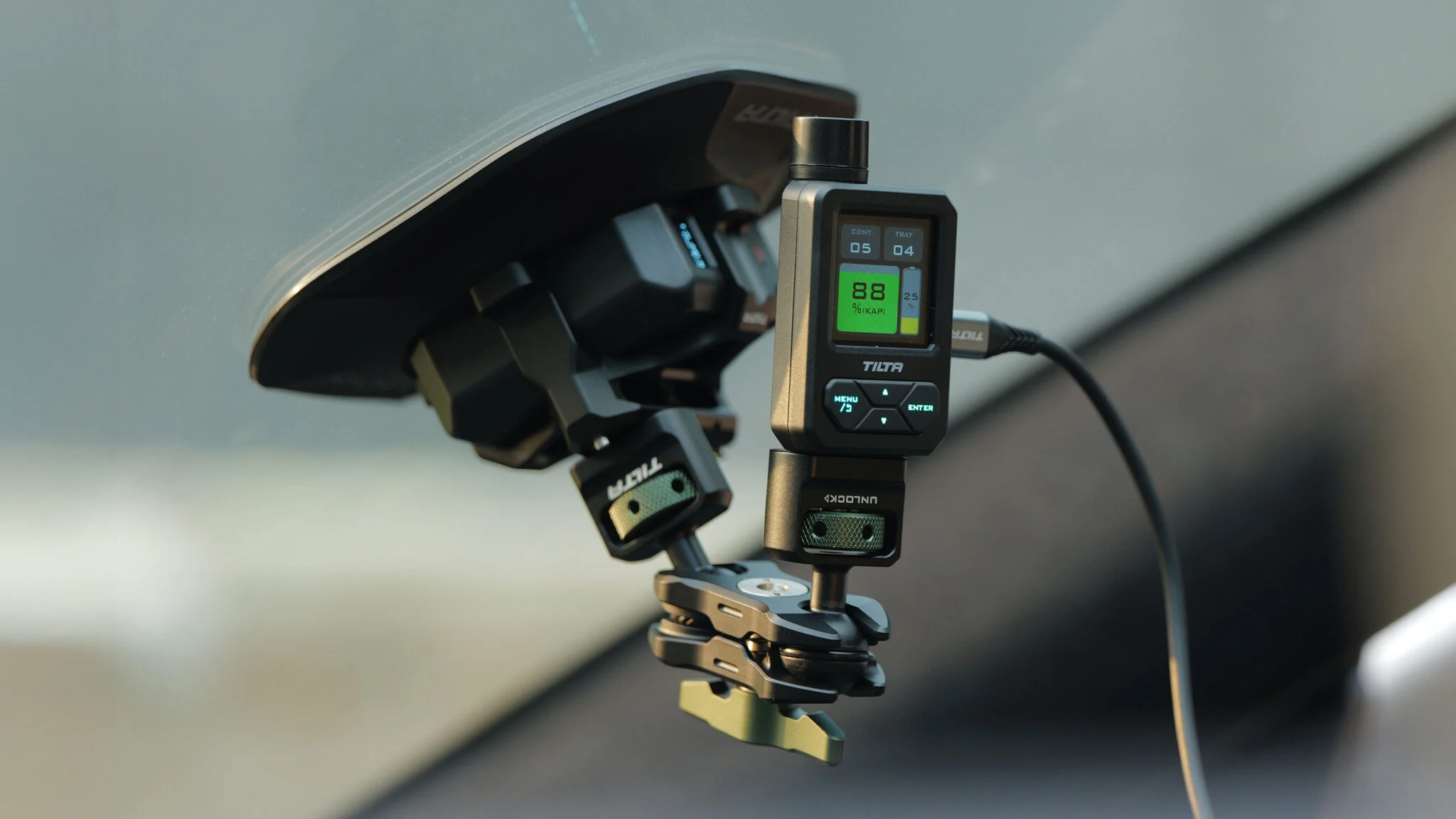

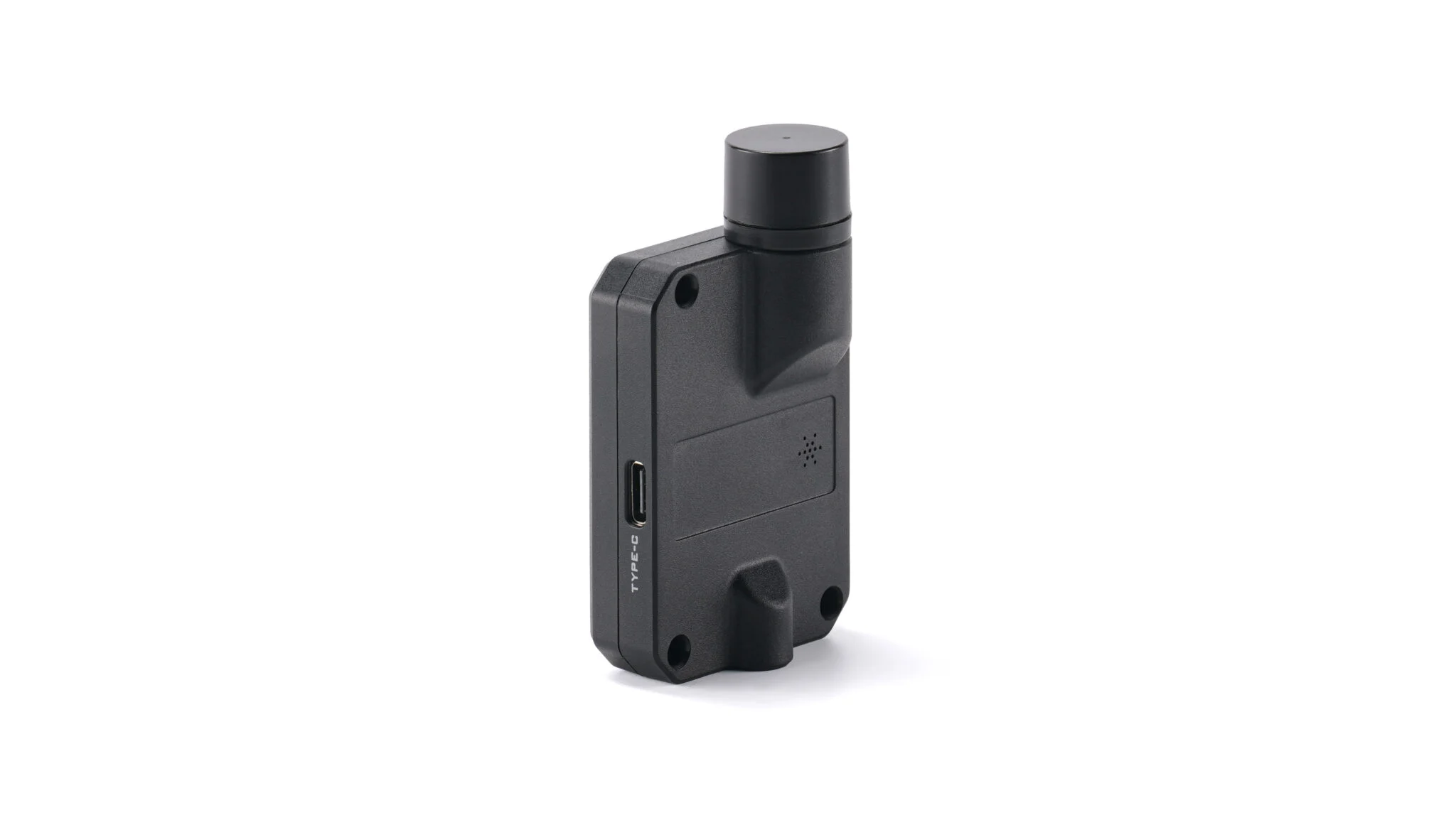

Built for a wide range of shooting environments, the module operates reliably in temperatures ranging from -20°C to 90°C, making it suitable for both indoor and outdoor productions. The unit features USB-C power for convenient plug-and-play operation and includes a 1/4″-20 mounting thread, allowing it to be integrated easily into professional camera and vehicle-rigging setups. No manual pairing is required for straightforward setup and operation.
Compact, lightweight and purpose-built for the Tilta Hydra ecosystem, the Tilta HDA-ESC-WMM Wireless Monitoring Module is an ideal accessory for cinematographers, camera operators, grips and production teams using electronic suction cups for professional vehicle-mounted and specialized camera configurations.
Features
- Real-Time Wireless Monitoring – Monitor suction pressure (KPA) and battery status of connected electronic suction cups.
- Up to 12 Suction Cups – Supports simultaneous monitoring with individual status checks for each connected unit.
- Ultra-Fast Status Updates – 50ms cycling speed for 1–6 units and 100ms for up to 12 units.
- Audible & Visual Alerts – Immediately warns operators when a loss of suction pressure is detected.
- Wide Operating Temperature – Reliable operation from -20°C to 90°C for indoor and outdoor production environments.

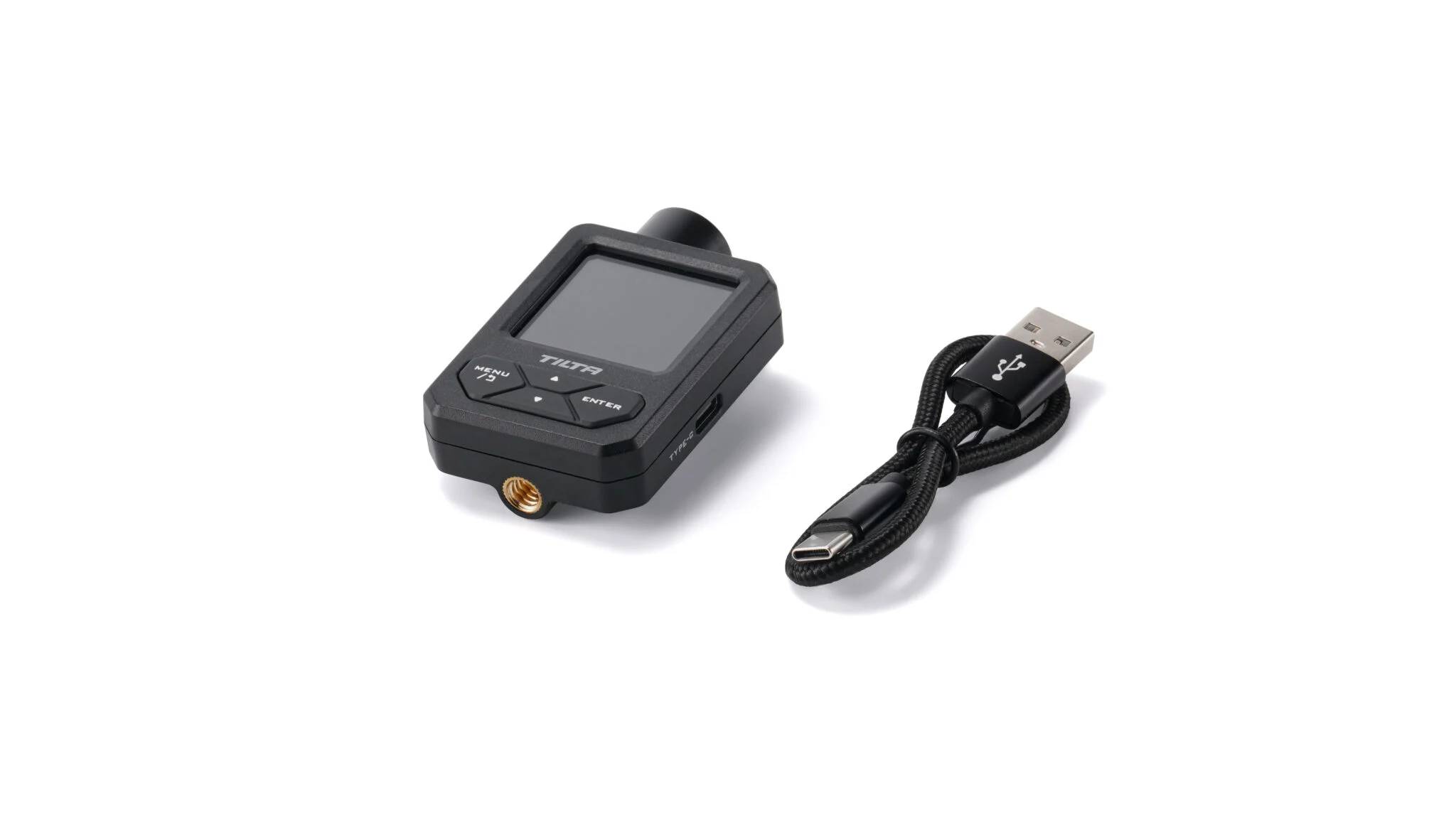

- Easy USB-C Power – Plug-and-play USB-C connectivity with no manual pairing required.
- Flexible Mounting – Integrated 1/4″-20 thread allows convenient installation on professional camera rigs and mounting systems.
