SmartCAM Monitor SM7-PRO-3G – 7″ 3200-Nit 3G-SDI Hyper Bright Professional Monitor
The SmartCAM Monitor SM7-PRO-3G from SmartSystem is a professional 7-inch Hyper Bright 3G-SDI monitor engineered for demanding filmmaking, camera-stabilizer and professional production environments. Combining an ultra-bright IPS display, rugged solid-aluminum construction, Adaptive Backlight Management, advanced monitoring tools and SmartSystem’s XTBus communication technology, the SM7-PRO-3G delivers dependable, highly visible monitoring whether shooting indoors, outdoors or under rapidly changing lighting conditions.

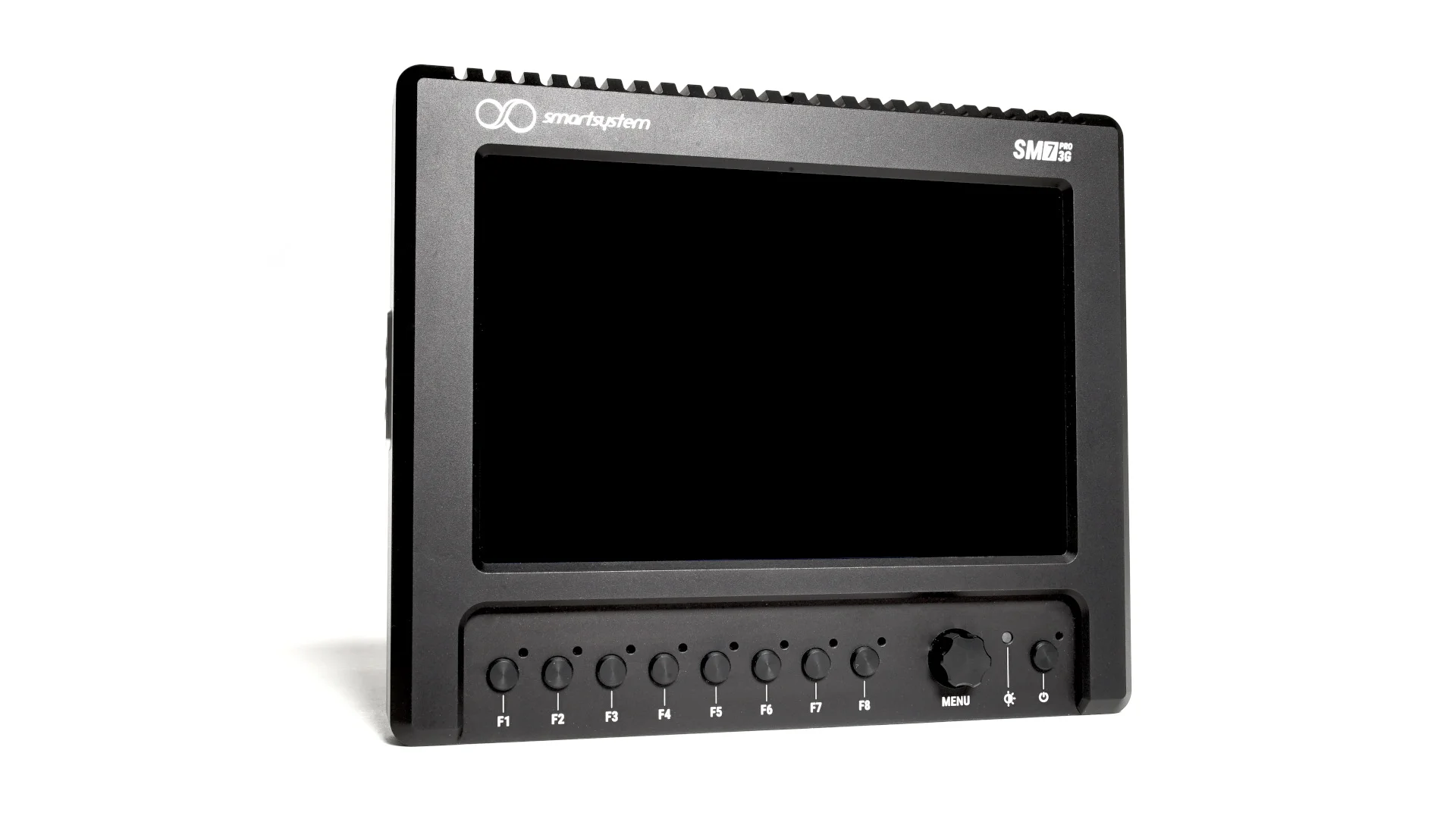

At the heart of the SM7-PRO-3G is a 7-inch IPS LCD panel with a native resolution of 1920 × 1200, delivering detailed image monitoring with a 1200:1 contrast ratio. With brightness reaching an exceptional 3200 nits, the display is designed to remain clearly visible in bright outdoor environments where conventional production monitors can become difficult to view.
Ultra-Bright 3200-Nit Display for Outdoor Monitoring
For Steadicam operators, camera crews and filmmakers working outdoors, screen visibility is critical. The SmartCAM SM7-PRO-3G provides up to 3200 nits of maximum brightness, allowing operators to maintain a clear view of the image even in challenging daylight conditions.
The IPS screen is protected by durable glass with a special anti-reflective coating, helping reduce unwanted reflections while maintaining excellent image visibility.
This makes the SM7-PRO-3G particularly well suited to outdoor filmmaking, live productions, sports, commercials, documentaries and professional stabilizer applications.
Adaptive Backlight Management
Maximum brightness is not always necessary, particularly when moving between indoor and outdoor locations. SmartSystem addresses this with its integrated Adaptive Backlight Management (A.B.M.) technology.
A dedicated ambient-light sensor detects surrounding lighting conditions and allows the monitor backlight to adapt accordingly. This provides the brightness needed for changing environments without requiring the operator to continuously adjust the monitor manually.
It is an especially valuable feature for stabilizer operators moving continuously through areas with different levels of ambient light.
Engineered for Modern Camera Stabilizers
The SmartSystem SM7-PRO-3G has been specifically engineered around the physical requirements of modern professional camera-stabilizer systems.
Its design provides excellent balance around its centre-of-gravity fixture, with lateral and central mounting possibilities helping operators integrate the monitor efficiently into professional stabilizer configurations.
Whether used on a Steadicam-style system, professional camera stabilizer or other advanced camera-support setup, the SM7-PRO-3G provides a rugged monitoring platform designed for production use.
Rugged Solid-Aluminum Construction
Professional production equipment must withstand demanding working environments. The SM7-PRO-3G features a case milled from solid aluminum, which is shot-peened and hard anodized for a durable professional finish.
The completely fanless design eliminates cooling-fan noise and removes a potential mechanical point of failure, making the monitor suitable for professional environments where quiet operation and reliability are important.
Despite its rugged construction, the monitor weighs approximately 1.25–1.3 kg (2.7–2.75 lb), making it practical for integration into professional stabilizer and camera-support systems.
Water Managed System for Challenging Conditions
Outdoor productions do not always happen under perfect weather conditions. The SM7-PRO-3G incorporates SmartSystem’s dedicated Water Managed System, designed to manage sudden water drops and natural rain through specifically engineered drainage paths within the monitor housing.
These paths use gravity to direct water toward dedicated outlets at the bottom of the monitor when it is operated in the correct upright orientation.
This provides an additional level of protection for professional operators working in unpredictable outdoor production environments.
Note: The SM7-PRO-3G should not be considered fully waterproof and must be operated according to SmartSystem’s specified orientation and environmental guidelines.

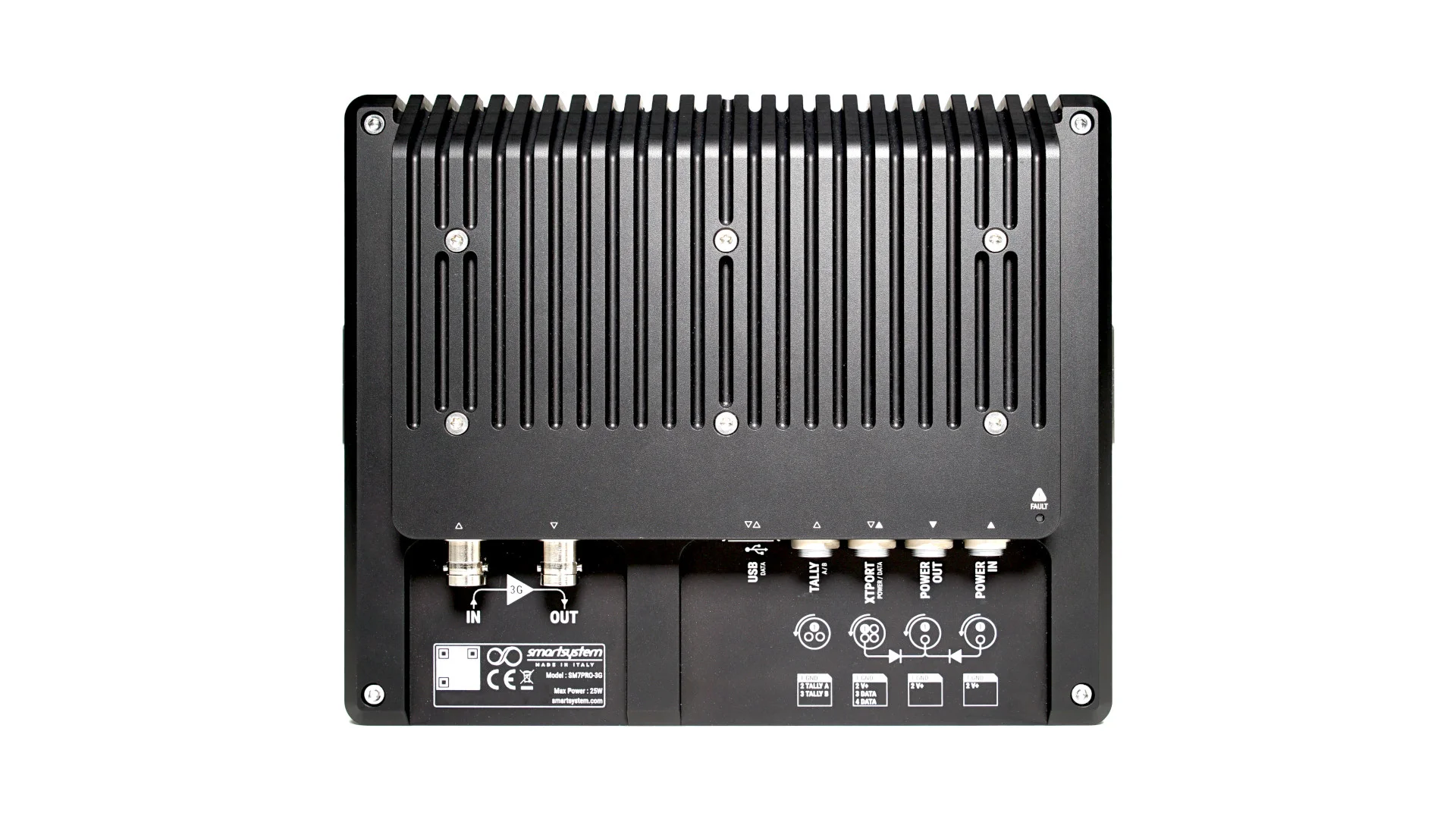

Full 3G-SDI Connectivity
Built around professional video workflows, the SmartCAM SM7-PRO-3G provides 3G-SDI connectivity compliant with SMPTE 425A and SMPTE 425B standards.
It includes:
- 1 × 3G-SDI Input
- 1 × Buffered 3G-SDI Video Output
The buffered output makes it possible to pass the incoming video signal onward to additional compatible equipment, helping the SM7-PRO-3G integrate cleanly into professional production monitoring setups.
Professional 3D LUT Support
The SM7-PRO-3G provides advanced LUT functionality for professional colour-managed monitoring workflows.
Built-in support includes Log-to-Rec.709 conversion options for popular formats including Log-C, C-Log, S-Log2, S-Log3, V-Log, J-Log1 and REDLogFilm.
Operators can also import their own custom 3D LUTs via USB, providing greater flexibility for monitoring different cameras, colour profiles and creative looks directly on set.
Professional Image Monitoring Tools
Beyond its high-brightness display, the SM7-PRO-3G provides essential image-analysis and exposure-assistance tools required by professional camera operators.
Available monitoring functions include tools such as Waveform, Vectorscope, Histogram, Zebra and Focus Peaking, helping operators evaluate exposure, colour and focus directly from the monitor.
Combined with the high-resolution IPS display and LUT functionality, these tools make the SM7-PRO-3G a powerful monitoring solution for demanding cinematography workflows.
Integrated On-Screen Tally
The SM7-PRO-3G features a dedicated 3-pin push-pull Tally input that allows tally information to be displayed directly on screen.
Two separate tally channels provide Red and Green indications, making the monitor useful for professional production environments where operators need immediate visual confirmation of camera or production status.
XTPort and XTBus Communication
SmartSystem equips the SM7-PRO-3G with its XTPort, providing power and fast data communication with compatible peripherals through the SmartSystem XTBus ecosystem.
XTBus is designed to create an interconnected environment in which compatible equipment—including monitors, motors, sensors, batteries and other devices—can communicate and exchange information.
This makes the SM7-PRO-3G more than a standalone monitor; it can become an integrated component within a broader SmartSystem production ecosystem.
Flexible Professional Power Options
The monitor supports a wide 9V DC to 34V DC operating voltage range, providing flexibility when integrating it with different professional camera and stabilizer power systems.
A dedicated power output also supports daisy-chain configurations for compatible peripheral equipment.
Optional V-Lock or ThreeStuds battery plates further expand the available powering configurations.
Even at maximum screen brightness, the SM7-PRO-3G has a maximum power consumption of less than 25W.
Built for Professional Production Environments
The SmartCAM SM7-PRO-3G is designed to operate across a wide range of production environments, with an operating temperature range of approximately -20°C to +40°C and working humidity range of 10% to 80%.
From controlled studio productions to bright outdoor locations, the combination of rugged construction, adaptive brightness, high-output display and professional connectivity makes it a highly capable monitoring solution for demanding camera crews.
Why Choose the SmartCAM Monitor SM7-PRO-3G?
The SmartSystem SmartCAM SM7-PRO-3G brings together the features professional camera and stabilizer operators need most: exceptional daylight visibility, accurate high-resolution monitoring, rugged construction, intelligent brightness control and professional video connectivity.
Its 7-inch 1920 × 1200 IPS panel, up to 3200-nit brightness, anti-reflective protective glass, Adaptive Backlight Management, 3G-SDI input/output, custom 3D LUT support, on-screen tally, Water Managed System and XTBus connectivity create a monitoring platform specifically suited to demanding professional filmmaking.
For cinematographers, Steadicam and stabilizer operators, camera assistants, production companies and professional filmmaking crews looking for a rugged ultra-bright 7-inch 3G-SDI monitor, the SmartCAM SM7-PRO-3G provides an impressive combination of visibility, durability, connectivity and production-focused design.
Technical Highlights
Display Size: 7-inch IPS LCD
Native Resolution: 1920 × 1200
Maximum Brightness: Up to 3200 nits
Contrast Ratio: 1200:1
Video Input: 1 × 3G-SDI
Video Output: 1 × Buffered 3G-SDI
3G-SDI Standard: SMPTE 425A / SMPTE 425B
LUT Support: Built-in Log conversion + Custom 3D LUT import via USB
Data Connectivity: XTPort / XTBus
Tally: Dedicated Tally input with Red/Green channels
Power Input Range: 9V DC – 34V DC
Maximum Power Consumption: Less than 25W
Operating Temperature: -20°C to +40°C
Operating Humidity: 10% – 80%
Weight: Approx. 1.25–1.3 kg / 2.7–2.75 lb
Construction: Solid milled aluminum, shot-peened and hard anodized
Cooling: Completely fanless
Environmental Design: Water Managed System
In the Box
- 1x SM7 PRO 3G 7″ monitor / 3200 nits
- 1x 2pin-2pin push-pull connector
- 1x Resin case
- 1x Neoprene softshell
- 1x USB XTDongle for PC/MAC connection
