Smartsystem SmartCAM Monitor SM5-PRO-3G

Description

SmartSystem SmartCAM Monitor SM5-PRO-3G – 5″ 3G-SDI 3200-Nit Professional Monitor

Professional Ultra-Bright Monitoring in an Ultra-Compact Design

The SmartSystem SmartCAM Monitor SM5-PRO-3G is a professional 5-inch ultra-high-brightness 3G-SDI monitor engineered for filmmakers, camera operators, Steadicam operators and professional cinema crews who require exceptional outdoor visibility, rugged construction and a compact monitoring solution.

Delivering up to an impressive 3200 nits of brightness, the SM5-PRO-3G is designed to maintain excellent screen visibility even when working in demanding daylight and outdoor shooting environments. Its compact form factor makes it particularly well suited to professional camera stabilizers, Steadicam-style sleds, camera rigs and other applications where keeping size and weight under control is essential.

Built around a rugged, precision-machined solid aluminum frame, the monitor combines professional durability with a slim and efficient design. The aluminum structure surrounds and protects the display glass, helping create a robust monitoring solution without requiring a bulky external protective cage.

For professional video workflows, the SM5-PRO-3G provides 3G-SDI input and buffered SDI output, LUT upload capability via USB and SmartSystem’s XTPort/XTBus ecosystem for power and data communication with compatible peripherals.

The result is a purpose-built professional monitoring solution that brings together extreme brightness, compact dimensions, rugged construction and production-ready SDI connectivity.

---

Ultra-High 3200-Nit Brightness

Outdoor monitoring can become difficult when conventional displays are exposed to strong ambient light or direct sunlight. The SmartCAM SM5-PRO-3G addresses this with an ultra-high-brightness LCD capable of delivering up to 3200 nits.

This exceptional brightness makes the monitor particularly suitable for exterior productions, daylight camera operating and stabilizer work where adding a large monitor hood may be inconvenient.

Combined with protective glass and a dedicated anti-reflective coating, the display is engineered to provide excellent visibility in challenging shooting conditions.

Whether operating indoors, on location or under strong daylight, the SM5-PRO-3G provides operators with a bright and highly visible monitoring image.

---

5-Inch Professional IPS Display

Despite its compact dimensions, the SM5-PRO-3G is designed to provide the image quality required for professional monitoring.

Its 5-inch IPS display delivers detailed Full HD-class monitoring with a 1000:1 contrast ratio, allowing camera and stabilizer operators to clearly evaluate the image while maintaining a small overall monitor footprint.

The combination of compact screen size and extremely high brightness makes the SM5-PRO-3G particularly useful for mobile cinema configurations where operators need a clear image without adding unnecessary bulk to their rig.

Display Highlights

• 5-inch professional IPS display
• Up to 3200-nit maximum brightness
• 1000:1 contrast ratio
• Protective display glass
• Special anti-reflective coating
• Designed for indoor and outdoor professional monitoring

---

Full 3G-SDI Connectivity for Professional Cinema Workflows

The SmartSystem SmartCAM SM5-PRO-3G is designed around professional SDI-based camera systems.

It provides one 3G-SDI input compliant with SMPTE 425A / SMPTE 425B, together with one buffered video output.

The buffered SDI output makes the monitor easier to integrate into larger production configurations where the video signal may need to continue to another monitoring or video device.

This professional connectivity makes the SM5-PRO-3G an excellent monitoring option for cinema cameras, stabilizer systems, Steadicam-style rigs and other professional production environments built around SDI video.

---

Designed for Steadicam & Stabilizer Operators

The SM5-PRO-3G is especially compelling for professional stabilizer applications.

A stabilizer monitor needs to remain clearly visible while the operator is moving, working from different angles and frequently shooting outdoors. At the same time, unnecessary monitor size and weight can affect the overall handling and balance of a stabilizer system.

SmartSystem combines a 5-inch compact display, 3200-nit brightness and a lightweight 415 g construction, making the SM5-PRO-3G highly suitable for professional stabilizer monitoring.

Its multiple mounting points further allow the monitor to be positioned according to the operator’s preferred viewing angle and rig configuration.

---

Rugged Solid-Aluminum Construction

Professional production equipment needs to withstand the realities of daily use.

The SM5-PRO-3G features a case completely milled from solid aluminum, with a shot-peened and hard-anodized finish.

Rather than placing the display inside an unnecessarily bulky enclosure, SmartSystem uses the aluminum frame itself as an integrated protective structure. The frame provides additional protection around the LCD glass while maintaining the monitor’s streamlined profile.

This construction gives the SM5-PRO-3G the durability expected from equipment intended for professional cinema, broadcast and stabilizer environments.

---

Protected Recessed Connector Design

Cable connectors are particularly vulnerable on camera and stabilizer rigs. Movement, transportation and accidental impacts can place unwanted stress on exposed connections.

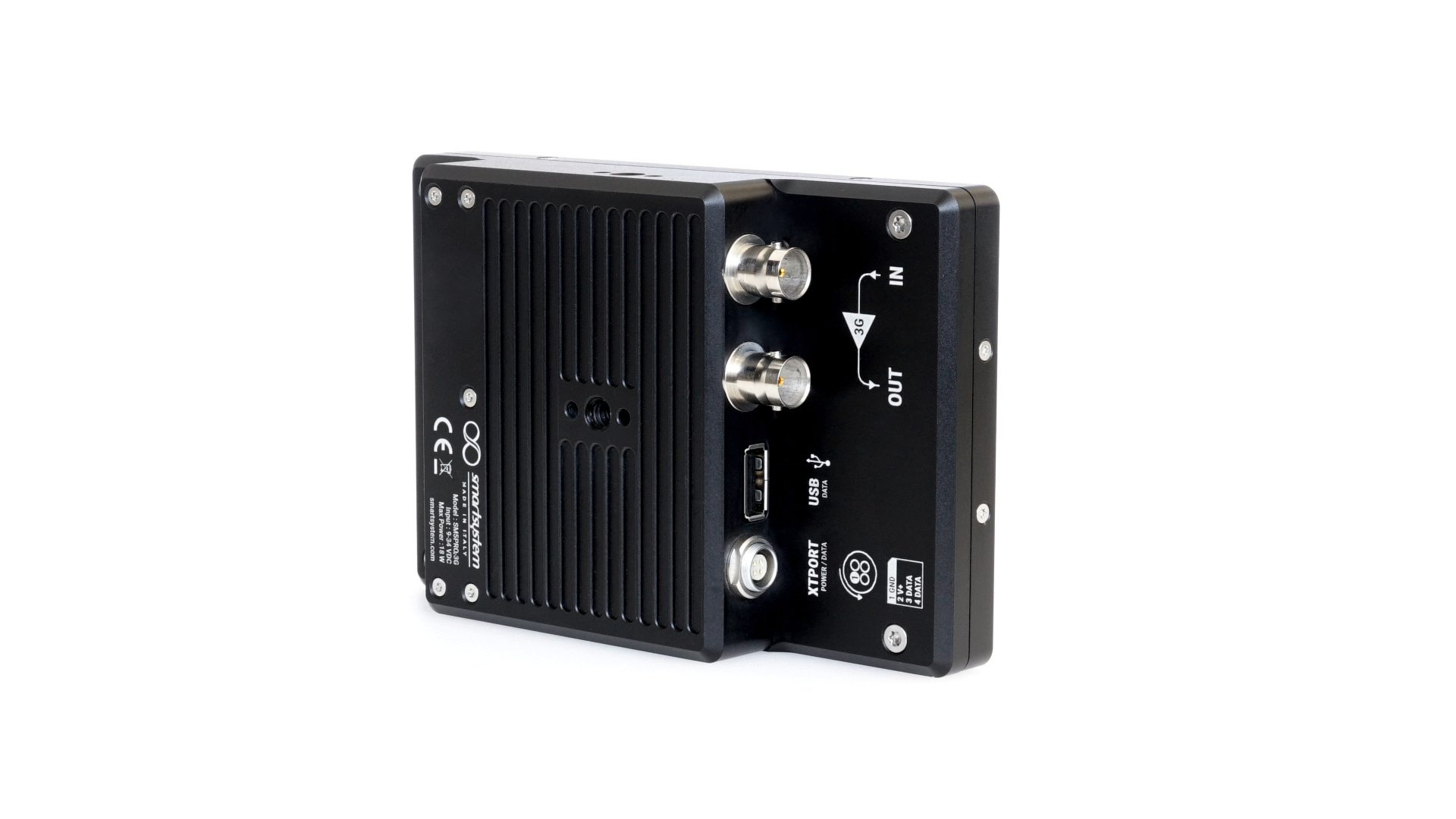

The SM5-PRO-3G incorporates recessed connector sockets within its frame, helping shield connected cables and connectors from potential physical damage.

This thoughtful design is particularly useful for dynamic camera configurations where cables are regularly connected, disconnected and moved during production.

---

Recessed Control Buttons

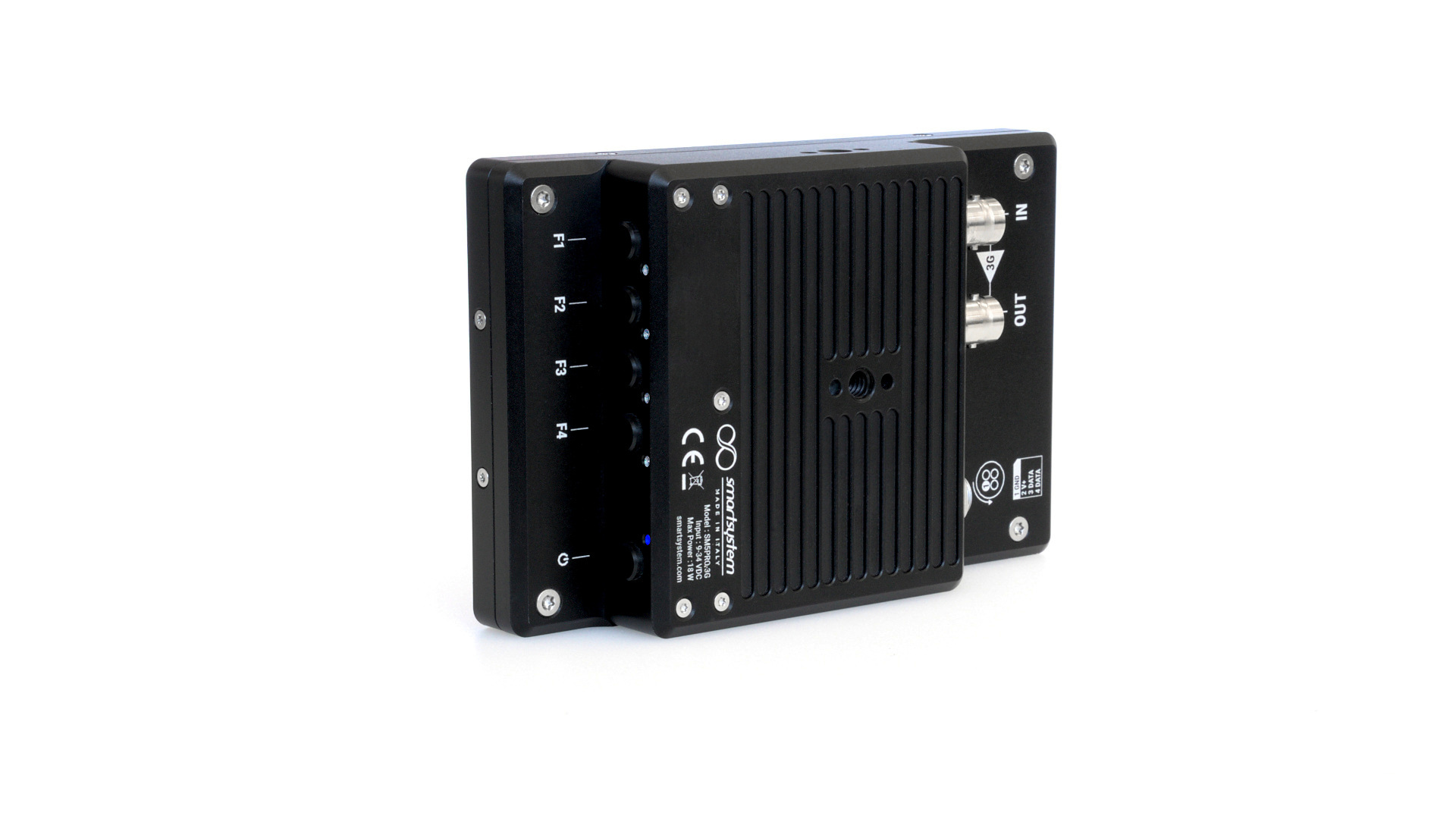

The monitor also features recessed operating buttons.

By positioning the controls within the protective structure of the monitor, SmartSystem reduces the possibility of accidental button presses while handling or operating the rig.

It is a small but practical design consideration for professional operators who need dependable controls during demanding shooting situations.

---

Multiple Professional Mounting Options

Every camera configuration is different, particularly when working with professional stabilizers and customized camera rigs.

For greater installation flexibility, the SM5-PRO-3G features mounting points positioned around the upper, lower and rear sections of the monitor, with dedicated anti-rotation provisions.

This allows operators to integrate the monitor into a variety of professional setups and position the screen according to their preferred operating configuration.

Whether installed on a stabilizer sled, camera rig or compatible mounting system, the SM5-PRO-3G is designed to offer flexible positioning without compromising its compact profile.

---

LUT Support via USB

Modern digital cinema workflows frequently rely on LUTs to provide a more representative monitoring image when cameras are recording in Log or other specialized picture profiles.

The SmartCAM SM5-PRO-3G includes a USB Type-A port for LUT uploads, allowing the monitor to be incorporated into LUT-based professional monitoring workflows.

This gives cinematographers and camera operators greater flexibility when monitoring images on set.

---

SmartSystem XTPort & XTBus Integration

A key feature of the SM5-PRO-3G is its integration with SmartSystem’s connected product ecosystem.

The monitor includes an XTPort for power and data communication, utilizing SmartSystem’s XTBus architecture to communicate with compatible peripherals.

The system is designed around a unified communication approach that can connect compatible components such as monitors, motors, sensors, gauges, batteries and other SmartSystem devices.

This makes the SM5-PRO-3G more than a standalone display—it can become part of a broader integrated SmartSystem production and camera-stabilization workflow.

---

Flexible Power Options

The SM5-PRO-3G supports a broad DC input range, making it suitable for integration into professional camera and stabilizer power systems.

The monitor operates across approximately 10–34V DC and consumes 15W or less at maximum brightness.

Power and data can be supplied through the monitor’s 4-pin push-pull XTPort connection.

For configurations requiring an independent onboard battery solution, optional V-Lock or ThreeStuds battery plates can also be used.

---

Fanless Design

The SmartCAM SM5-PRO-3G uses a completely fanless design.

Eliminating an internal cooling fan helps create a simpler and quieter monitoring solution while reducing another mechanical component from the system—an especially useful characteristic for professional film production environments.

---

Technical Specifications

Specification	SmartSystem SM5-PRO-3G
Product Type	Professional 3G-SDI Monitor
Display Size	5″
Panel Type	IPS LCD
Maximum Brightness	Up to 3200 nits
Contrast Ratio	1000:1
SDI Input	1 × 3G-SDI
SDI Output	1 × Buffered Video Output
SDI Compliance	SMPTE 425A / SMPTE 425B
LUT Upload	Yes, via USB
Data Interface	XTPort / XTBus
USB	1 × USB Port
Construction	Solid Milled Aluminum
Screen Protection	Protective Glass with Anti-Reflective Coating
Power Input	XTPort / Push-Pull Connection
DC Voltage Range	Approx. 10–34V DC
Maximum Power Consumption	≤15W
Optional Battery Plates	V-Lock / ThreeStuds
Weight	Approx. 415 g / 14.6 oz
Operating Temperature	-20°C to +30°C
Operating Humidity	10%–80%
Cooling	Fanless

---

Built for Professional Cinema Production

The SmartSystem SmartCAM SM5-PRO-3G is built for operators who need professional monitoring without turning their camera or stabilizer setup into a bulky system.

Its combination of a compact 5-inch form factor and extremely high 3200-nit brightness is particularly valuable for Steadicam and stabilizer operators who regularly transition between interior and exterior environments.

The durable aluminum construction protects the monitor while keeping overall weight to approximately 415 grams. At the same time, professional 3G-SDI connectivity, LUT support, multiple mounting positions and XTPort integration provide the flexibility required for sophisticated production setups.

Instead of simply making a conventional monitor brighter, SmartSystem has developed the SM5-PRO-3G around the requirements of professional camera movement and stabilization workflows.

---

Why Choose the SmartSystem SM5-PRO-3G?

Choose the SmartCAM SM5-PRO-3G when your workflow demands a monitor that remains compact, rugged and exceptionally bright.

The 3200-nit display provides the visibility required for demanding outdoor environments, while the solid-aluminum construction is engineered for professional production use. Its 3G-SDI input and buffered output integrate naturally with professional cinema equipment, while USB LUT support provides additional flexibility for modern digital cinema monitoring.

For Steadicam operators, camera operators, cinematographers and professional production crews looking for a compact monitor that can handle demanding real-world shooting environments, the SmartSystem SmartCAM SM5-PRO-3G 5″ 3G-SDI Monitor provides a powerful combination of daylight visibility, durability, connectivity and mounting flexibility.

---

Ideal For

• Professional Steadicam operators
• Camera stabilizer systems
• Professional cinema cameras
• Camera operators
• Cinematographers
• Film and television productions
• Commercial productions
• Outdoor filmmaking
• Daylight shooting environments
• Documentary production
• Broadcast camera systems
• Professional camera rigs
• Mobile cinema configurations
• SmartSystem stabilizer setups

---

In the Box

• 1x SM5 PRO 3G 7″ monitor / 3200 nits
• 1x 2pin-4pin push-pull connector
• 1x USB XTDongle for PC/MAC connection

---
