Atlas Lens – Mercury Series 6-Lens Set (36/42/54/72/95/138)
Key Features
- Focal Lengths Included:
- 36mm T2.2
- 42mm T2.2
- 54mm T2.2
- 72mm T2.2
- 95mm T2.2
- 138mm T2.6
- Anamorphic Squeeze Ratio: 1.5x
- Sensor Coverage: Full-frame (36.7mm x 25.54mm)
- Lens Mount: PL mount (interchangeable)
- Close Focus (approx.):
- 36mm – 1.5 ft
- 42mm – 1.75 ft
- 54mm – 2 ft
- 72mm – 2.5 ft
- 95mm – 3 ft
- 138mm – 4 ft
- Optical Features:
- Signature golden anamorphic flares
- Oval bokeh and pleasing depth
- Low chromatic aberration and breathing
- Organic barrel distortion
- Build:
- Lightweight and compact (roughly 50% smaller than most anamorphic primes)
- 95mm standardized front diameter
- Matched gear positions across all lenses
- Image Formats Supported: 2:1, 2.25:1, 2.4:1, 2.66:1 when de-squeezed
Description

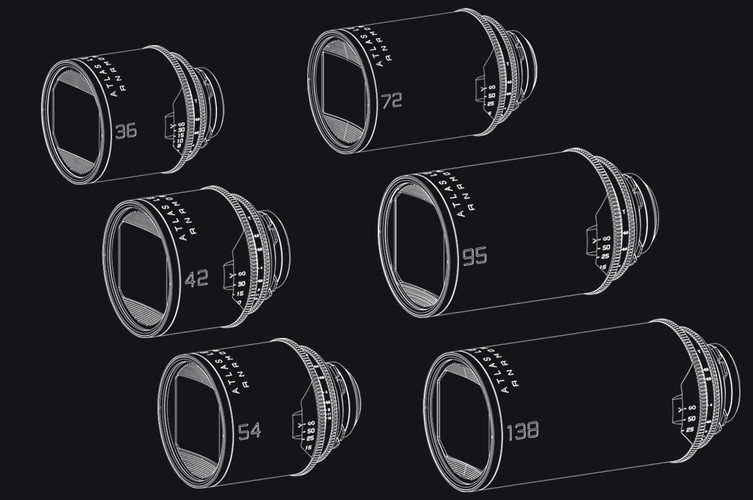

Atlas Lens – Mercury Series 6-Lens Set (36mm / 42mm / 54mm / 72mm / 95mm / 138mm) 1.5x Full-Frame Anamorphic Prime Lenses
The Atlas Mercury Series 6-Lens Set features six precision-engineered full-frame anamorphic prime lenses (36mm, 42mm, 54mm, 72mm, 95mm, and 138mm) with a 1.5x squeeze ratio—ideal for cinematographers seeking premium optical performance and a classic anamorphic look in a lightweight, compact form factor.
Designed by Atlas Lens Co., the Mercury Series offers rich golden flares, oval bokeh, minimal chromatic aberration, and beautiful organic distortion. These 1.5x full-frame anamorphic lenses are perfectly suited for digital cinema cameras and are built with standard PL mounts (interchangeable to LPL or EF with adapters).
Each focal length in this lens kit provides unique storytelling capabilities—from wide to telephoto—allowing DPs to compose their frames with stunning anamorphic depth, dimensionality, and character. The Mercury Series stands out for its uniform design, compact build, and full-frame sensor coverage—making it a versatile choice for high-end productions, commercials, music videos, and narrative films.
Introducing the Atlas Mercury Series 1.5x Full-Frame Anamorphic Lenses
More personality and zero compromises — Mercury goes wherever your stories take you. Mercury Series feature full-frame coverage, a 1.5x squeeze ratio with enhanced bokeh, a dynamic geometric optical personality and warm vintage tones — all at half the size and weight of most pro anamorphic lenses.
Optical Personality- |
Modern conveniences- |
 Pleasing, classic anamorphic barrel distortion |
 Mercury 36mm, 42mm, 54mm, 72mm and 95mm are an incredibly fast T2.2, with the 138mm maintaining a fast T2.6 |
 Exceptional optical performance with vintage geometric personality |
 Lightweight and compact: Half the size and weight of most pro anamorphic lenses |
 Warm vintage tones with golden streak flares |
 Standardized gears and diameters with 95mm front diameter |
 Near-zero chromatic aberration |
|
Enhanced bokeh |
|
Technical Specs:
| Focal Length | Aperture Range | Min Focus | Weight | Length | Front Diameter | Sensor Coverage | Field of View | Flange System |
|---|---|---|---|---|---|---|---|---|
| 36mm | T2.2 – T16 | 1.5 ft / .46 m | 2.7 lbs / 1.2 kg | 4.9 in / 12.6cm | 95mm | Full Frame | 88° | PL Mount |
| 42mm | T2.2 – T16 | 2.0 ft / .56 m | 2.3 lbs / 1.1 kg | 4.4 in / 11.2cm | 95mm | Full Frame | 78° | PL Mount |
| 54mm | T2.2 – T16 | 2.5 ft / .76 m | 2.95 lbs / 1.3 kg | 6.3 in / 16.2cm | 95mm | Full Frame | 60° | PL Mount |
| 72mm | T2.2 – T16 | 3.0 ft / .91 m | 3.6 lbs / 1.6 kg | 6.3 in / 16.2cm | 95mm | Full Frame | 44° | PL Mount |
| 95mm | T2.2 – T16 | 3.0 ft / .91 m | 4.4 lbs / 2.0 kg | 6.9 in / 17.6cm | 95mm | Full Frame | 32° | PL Mount |
| 138mm | T2.2 – T16 | 4.0 ft / 1.2 m | 4.7 lbs / 2.1 kg | 8.1 in / 20.5cm | 95mm | Full Frame | 23° | PL Mount |
